美制JIC外螺纹74°外锥面
JIC MALE 74° CONE

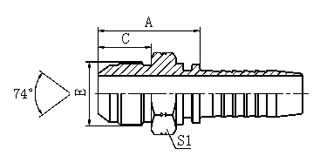

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C S1
16711-04-03 7/16"X20 5 03   26 14 12
16711-04-04 7/16"X20 6 04   26.5 14 12
16711-05-04 1/2"X20 6 04   26.5 14 14
16711-05-05 1/2"X20 8 05   26.5 14 14
16711-05-06 1/2"X20 10 06   26.5 14 17
16711-06-04 9/16"X18 6 04   26.5 14.1 17
16711-06-05 9/16"X18 8 05   26.5 14.1 17
16711-06-06 9/16"X18 10 06   26.5 14.1 17
16711-08-06 3/4"X16 10 06   31.5 16.7 22
16711-08-08 3/4"X16 12 08   32 16.7 22
16711-10-06 7/8"X14 10 06   32 19.3 24
16711-10-08 7/8"X14 12 08   34.3 19.3 24
16711-10-10 7/8"X14 16 10   35.5 19.3 24
16711-12-08 1.1/16"X12 12 08   39 21.9 30
16711-12-10 1.1/16"X12 16 10   40 21.9 30
16711-12-12 1.1/16"X12 20 12   40 21.9 30
16711-12-16 1.1/16"X12 25 16   41 21.9 30
16711-14-10 1.3/16"X12 16 10   41.5 22.6 32
16711-14-12 1.3/16"X12 20 12   40.6 22.6 32
16711-16-12 1.5/16"X12 20 12   42.5 23.1 36
