22691K



90°英管短身内螺纹60°外锥面
90°BSP COMPACT FEMALE 60°CONE

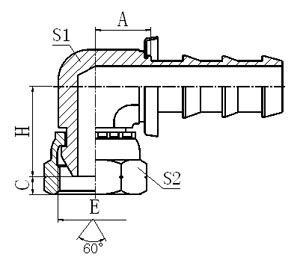

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH A C H S1 S2
22691K-04-04 G1/4"X19 6 04 17.5 5.5 18.5 11 19
22691K-06-04 G3/8"X19 6 04 20 6.3 23 16 22
22691K-06-05 G3/8"X19 8 05 20 6.3 23 16 22
22691K-06-06 G3/8"X19 10 06 20 6.3 24 16 22
22691K-08-06 G1/2"X14 10 06 23 7.5 26.5 19 27
22691K-08-08 G1/2"X14 12 08 23.5 7.5 28.5 19 27
22691K-10-10 G5/8"X14 16 10 25 9.5 29.2 22 30
22691K-12-12 G3/4"X14 20 12 27.5 10.9 33 27 32
22691K-16-16 G1"X11 25 16 32.5 11.7 38.1 33 41
