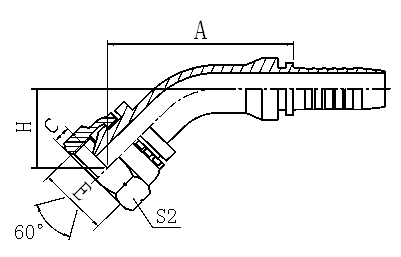

45°英管内螺纹60°外锥面
45° BSP FEMALE 60° CONE

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C H S2
22641-04-04 G1/4"X19 6 04   42.3 5.5 20.2 19
22641-06-04 G3/8"X19 6 04   43.2 6.3 21 22
22641-06-05 G3/8"X19 8 05   45.3 6.3 22 22
22641-06-06 G3/8"X19 10 06   46.9 6.3 22.6 22
22641-08-06T G1/2"X14 10 06   48.1 7.5 23.9 27
22641-08-08 G1/2"X14 12 08   61.1 7.5 26.1 27
22641-10-08 G5/8"X14 12 08   61.4 9.5 26.5 30
22641-10-10 G5/8"X14 16 10   72.6 9.5 27.8 30
22641-12-08T G3/4"X14 12 08   61.8 10.9 26.9 32
22641-12-10 G3/4"X14 16 10   73 10.9 28.2 32
22641-12-12 G3/4"X14 20 12   79.2 10.9 31.8 32
22641-16-12T G1"X11 20 12   80.8 11.7 33.4 41
22641-16-16 G1"X11 25 16   88.4 11.7 34.2 41
22641-20-16T G1.1/4"X11 25 16   85.3 11 31.1 50
22641-20-20W G1.1/4"X11 32 20   98.8 11 38 50
22641-24-24W G1.1/2"X11 40 24   116.8 13 45.5 55
22641-32-32W G2"X11 50 32   135.7 16 52.7 70
