22611   22611-T

22611-W

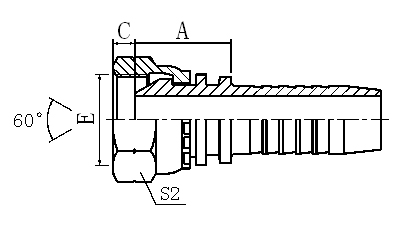

英管内螺纹60°外锥面
BSP FEMALE 60° CONE

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C S2
22611-02-03 G1/8"X28 5 03   15 5.5 14
22611-02-04 G1/8"X28 6 04   15 5.5 14
22611-04-03 G1/4"X19 5 03   17 5.5 19
22611-04-04 G1/4"X19 6 04   18 5.5 19
22611-04-05 G1/4"X19 8 05   18 5.5 19
22611-04-06 G1/4"X19 10 06   18 5.5 19
22611-06-04 G3/8"X19 6 04   19 6.3 22
22611-06-05 G3/8"X19 8 05   19 6.3 22
22611-06-06 G3/8"X19 10 06   19.5 6.3 22
22611-06-08 G3/8"X19 12 08   19.5 6.3 22
22611-08-06T G1/2"X14 10 06   21 7.5 27
22611-08-08 G1/2"X14 12 08   21.5 7.5 27
22611-10-08 G5/8"X14 12 08   22 9.5 30
22611-10-10 G5/8"X14 16 10   23.5 9.5 30
22611-12-08T G3/4"X14 12 08   22 10.9 32
22611-12-10 G3/4"X14 16 10   24 10.9 32
22611-12-12 G3/4"X14 20 12   24 10.9 32
22611-16-12T G1"X11 20 12   24 11.7 41
22611-16-14 G1"X11 22 14   26 11.7 41
22611-16-16 G1"X11 25 16   27 11.7 41
