12611A



英管外螺纹60°内锥面或六角端面用组合垫密封的双用接头

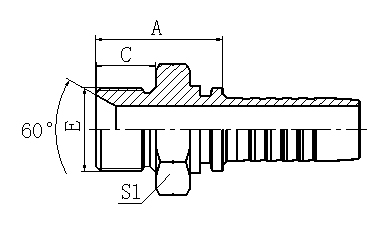

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C S1
12611A-02-03 G1/8"X28 5 03   22 10 14
12611A-04-04 G1/4"X19 6 04   24.5 12 19
12611A-04-05 G1/4"X19 8 05   24.5 12 19
12611A-06-05 G3/8"X19 8 05   26 13.5 22
12611A-06-06 G3/8"X19 10 06   28 13.5 22
12611A-06-08 G3/8"X19 12 08   28.5 13.5 22
12611A-08-06 G1/2"X14 10 06   33 16 27
12611A-08-08 G1/2"X14 12 08   33.5 16 27
12611A-08-10 G1/2"X14 16 10   32 16 27
12611A-10-08 G5/8"X14 12 08   35 17.5 30
12611A-10-10 G5/8"X14 16 10   36 17.5 30
12611A-12-08 G3/4"X14 12 08   36.5 18.5 32
12611A-12-10 G3/4"X14 16 10   37.5 18.5 32
12611A-12-12 G3/4"X14 20 12   37.5 18.5 32
12611A-16-12 G1"X11 20 12   42.5 20.5 41
12611A-16-16 G1"X11 25 16   43.5 20.5 41
12611A-20-16 G1.1/4"X11 25 16   45.5 20.5 50
12611A-20-20 G1.1/4"X11 32 20   46.5 20.5 50
12611A-24-24 G.1/2"X11 40 24   49 23 55
12611A-32-32 G2"X11 50 32   54.5 25.5 70
