20241 20241-T



45°公制内螺纹平面

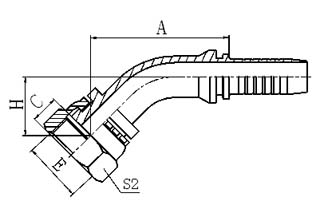

45° METRIC FEMALE FLAT SEAT
参考REF. GB/T 9065.3


代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C H S2
20241-14-04 M14X1.5 6 04   40.5 8.5 18.5 19
20241-14-05 M14X1.5 8 05   42.7 8.5 19.3 19
20241-16-05 M16X1.5 8 05   44.4 8.5 20 22
20241-18-06 M18X1.5 10 06   45.7 8 21.4 24
20241-22-08 M22X1.5 12 08   58.9 10 24 27
20241-27-10T M27X1.5 16 10   71.2 10 26.4 32
20241-30-12 M30X1.5 20 12   78.1 11 30 36
20241-36-12T M36X2 20 12   75 13 27.5 41
20241-36-14T M36X2 22 14   77.3 13 27 41
20241-36-16 M36X2 25 16   85.7 13 31.5 41
20241-39-16T M39X2 25 16   83.9 13 29.7 46
20241-42-20 M42X2 32 20   97.3 15 36.6 50
20241-45-20T M45X2 32 20   94.5 15 33.8 55
20241-52-20T M52X2 32 20   94.5 17 33.8 60
20241-52-24T M52X2 40 24   108.5 17 37.7 60
20241-60-28T M60X2 45 28   118.7 20 43.6 70
20241-64-32T M64X2 50 32   127.8 23 45.6 75

注：1.上述代号用于编织软管。 2.如需用于缠绕软管代号改为20242-xx-xx。
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20242-xx-xx.
