20231 20231-T



30°公制内螺纹平面
30° METRIC FEMALE FLAT SEAT
参考REF. GB/T 9065.3

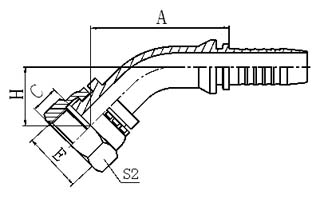

代 号 螺 纹 E 胶 管 HOSE BORE 尺 寸 DIMENSIONS
PART NO. THREAD E 公称内径 DN 标号 DASH   A C H S2
20231-22-08 M22X1.5 12 08 63.3 10 15 27
20231-27-10T M27X1.5 16 10 73.7 10 15.1 32
20231-30-12 M30X1.5 20 12 84.4 11 18.6 36
20231-36-12T M36X2 20 12 92.5 13 18.8 41
20231-39-16T M39X2 25 16 90.2 13 17.8 46
20231-45-20T M45X2 32 20 102.8 15 20 55
20231-52-24T M52X2 40 24 116.2 17 21.8 60
