00210

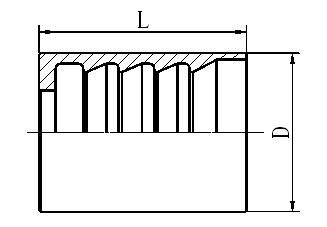

SAE100R2AT/ EN 853 2SN软管套筒
FERRULE FOR SAE100R2AT/ EN 853 2SN HOSE

代号 软 管 HOSE BORE 尺寸 DIMENSIONS
PART NO. 公称内径DN 标号DASH L
00210-03 5 03 27
00210-04 6 04 30
00210-05 8 05 31
00210-06 10 06 32
00210-08 12 08 34
00210-10 16 10 37
00210-12 20 12 43
00210-16 25 16 50
00210-20 32 20 59
00210-24 40 24 74
00210-32 50 32 78
