GB/T 10544 R15

SAE 100 R15

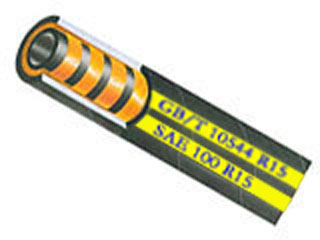

钢丝缠绕软管 Wire Spiral Hose



内衬层 Inner Tube：耐油合成橡胶 Oil Resistant Synthetic Rubber

增强层 Reinforcement：多层钢丝缠绕增强层 Multiple Steel Sprials Reinforcement

外覆层 Cover：耐油耐恶劣天气合成橡胶 Oil And Weather Resistant Synthetic

温度范围 Temperature Range：-40°C~+121°C

可用接头芯 Insert：xxxx3-xx-xx 系列 xxxx3-xx-xx Series


软管代号 公称内径 DN

软管尺寸

HOSE SIZE

 软管内径 HOSE I.D. 软管外径 HOSE O.D. 最低爆破压力
MIN.BURST
PRESSURE		 最大工作压力 MAX.W.P.

最小弯曲半径

MIN.BEND .RAD.

 配用套筒
FERRULE
HOSE PART NO. mm DASH in mm mm MPa MPa mm
R1506 10 -06 3/8 9.5 20.6 168 42 130 00621-06(R15)
R1508 12 -08 1/2 12.7 23.8 168 42 180 00621-08(R15)
R1512 20 -12 3/4 19.0 31.6 168 42 280 00621-12(R15)
R1516 25 -16 1 25.4 38.6 168 42 300 00621-16(R15)
R1520 32 -20 1-1/4 31.8 49.6 168 42 400 00621-20(R15)
R1524 40 -24 1-1/2 38.1 56.5 168 42 500 00621-24(R15)
