GB/T 10544 R12

SAE 100 R12   EN 856 R12

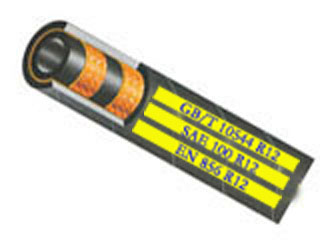

钢丝缠绕软管 Wire Spiral Hose



内衬层 Inner Tube：耐油合成橡胶 Oil Resistant Synthetic Rubber

增强层 Reinforcement：4 层钢丝缠绕增强层 4 Wire Sprials Reinforcement

外覆层 Cover：耐油耐恶劣天气合成橡胶 Oil And Weather Resistant Synthetic

温度范围 Temperature Range：-40°C~+121°C

可用接头芯 Insert：xxxx2-xx-xx 系列 xxxx2-xx-xx Series


软管代号 公称内径 DN

软管尺寸

HOSE SIZE

 软管内径 HOSE I.D. 软管外径 HOSE O.D. 最低爆破压力
MIN.BURST
PRESSURE		 最大工作压力 MAX.W.P.

最小弯曲半径

MIN.BEND .RAD.

 配用套筒
FERRULE
HOSE PART NO. mm DASH in mm mm MPa MPa mm
R1206 10 -06 3/8 9.5 20.3 110.3 27.6 127 00400-06
R1208 12 -08 1/2 12.7 23.8 110.3 27.6 178 00400-08
R1210 16 -10 5/8 15.9 27.4 110.3 27.6 203 00400-10
R1212 20 -12 3/4 19.0 30.7 110.3 27.6 241 00400-12
R1216 25 -16 1 25.4 38.0 110.3 27.6 305 00400-16
R1220 32 -20 1-1/4 31.8 47.0 82.7 20.7 419 01400-20
R1224 40 -24 1-1/2 38.1 53.5 69.0 17.2 508 01400-24
R1232 50 -32 2 50.8 66.7 69.0 17.2 635 00401-32
