1O-OG

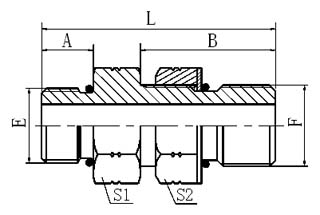

SAE O-RING BOSS PLUG L-SERIES ISO 11926-3

PART NO. THREAD O-RING DIMENSIONS
E F E F A B L S1 S2
1O-04OG 7/16"X20 7/16"X20 O904 O904 9.14 18 33 14 17
1O-04-06OG 7/16"X20 9/16"X18 O904 O906 9.14 20 35.1 17 19
1O-06OG 9/16"X18 9/16"X18 O906 O906 9.93 20 36 17 19
1O-06-08OG 9/16"X18 3/4"X16 O906 O908 9.93 22 40 22 24
1O-08OG 3/4"X16 3/4"X16 O908 O908 11.13 22 40 22 24
1O-08-12OG 3/4"X16 1.1/16"X12 O908 O912 11.13 29 51 32 32
1O-10OG 7/8"X14 7/8"X14 O910 O910 12.7 26 46 27 27
1O-12OG 1.1/16"X12 1.1/16"X12 O912 O912 15.1 29 54 32 32
1O-16OG 1.5/16"X12 1.5/16"X12 O916 O916 15.1 29 54 38 41
1O-20OG 1.5/8"X12 1.5/8"X12 O920 O920 15.1 29 54 50 50
1O-24OG 1.7/8"X12 1.7/8"X12 O924 O924 15.1 29 54 55 55
