4M

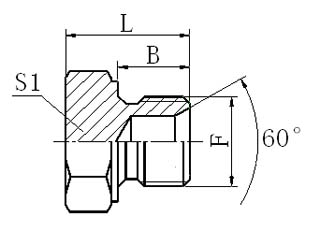

METRIC MALE DOUBLE USE FOR 60掳 CONE SEAT OR BONDED SEAL PLUG

PART NO. THREAD DIMENSIONS
F B L S1
4M-10 M10X1 8 15 14
4M-12 M12X1.5 10 17 17
4M-14 M14X1.5 11 19 19
4M-16 M16X1.5 12 20 22
4M-18 M18X1.5 12 20 24
4M-20 M20X1.5 14 23 27
4M-22 M22X1.5 14 23 27
4M-24 M24X1.5 14 25 30
4M-26 M26X1.5 16 28 32
4M-27D M27X1.5 16 28 32
4M-30 M30X2 18 30 36
4M-30D M30X1.5 18 30 36
