1FG





ORFS MALE O-RING / BSP MALE O-RING

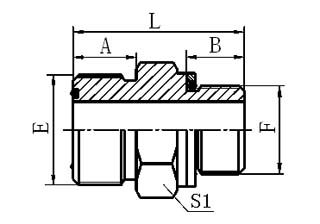

PART NO. THREAD O-RING DIMENSIONS
E F E F A B L S1
1FG-04-02 9/16"x18 G1/8"x28 O011 O011 10 9.5 27.5 17
1FG-04 9/16"X18 G1/4"X19 O011 O111 10 10 29 19
1FG-04-06 9/16"X18 G3/8"X19 O011 O113 10 11.5 31 22
1FG-06 11/16"X16 G3/8"X19 O012 O113 11.2 11.5 32.5 22
1FG-06-04 11/16'X16 G1/4"X19 O012 O111 11.2 10 31 19
1FG-06-08 11/16"X16 G1/2"X14 O012 O115 11.2 14 36.5 27
1FG-08 13/16"X16 G1/2"X14 O014 O115 13 14 38.5 27
1FG-08-06 13/16"X16 G3/8"X19 O014 O113 13 11.5 34.3 22
1FG-08-12 13/16"X16 G3/4"X14 O014 O119 13 15.5 42 32
1FG-10-08 1"x14 G1/2"x14 O016 O115 15.5 14 41 27
1FG-10-12 1"X14 G3/4"X14 O016 O119 15.5 15.5 44 32
1FG-12-08 1.3/16"X12 G1/2"X14 O018 O115 17 14 44 32
1FG-12 1.3/16"x12 G3/4"x14 O018 O119 17 15.5 45.6 32
1FG-12-16 1.3/16"X12 G1"X11 O018 O217 17 18 48 41
1FG-16-12 1.7/16"X12 G3/4"x14 O021 O119 17.5 15.5 48 38
1FG-16 1.7/16"X12 G1"X11 O021 O217 17.5 18 49.5 41
1FG-20 1.11/16"X12 G1.1/4"X11 O025 O222 17.5 20 55.5 50
1FG-20-16 1.11/16"X12 G1"X11 O025 O217 17.5 18 51.5 46
1FG-24 2"x12 G1.1/2"x11 O029 O224 17.5 21.5 57 55
