2OF

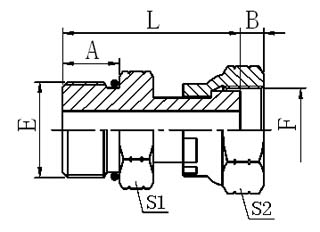

SAE O-RING BOSS S-SERIES ISO 11926-2

ORFS FEMALE

PART NO. THREAD O-RING DIMENSIONS
E F E A B L S1 S2
2OF-04 7/16"X20 9/16"X18 O904 11 8.5 32.5 17 19
2OF-04-06 7/16"X20 11/16"X16 O904 11 10 35.5 17 22
2OF-06-04 9/16"X18 9/16"X18 O906 12 8.5 33.5 17 19
2OF-06 9/16"X18 11/16"X16 O906 12 10 36.5 19 22
2OF-06-08 9/16"X18 13/16"X16 O906 12 11 38.5 19 27
2OF-08-06 3/4"X16 11/16"X16 O908 14 10 40.5 22 22
2OF-08 3/4"X16 13/16"X16 O908 14 11 42.5 22 27
2OF-10-08 7/8"X14 13/16"X16 O910 16 11 46.5 27 27
2OF-10 7/8"X14 1"X14 O910 16 13.5 50.5 27 30
2OF-12-10 1.1/16"X12 1"X14 O912 18.5 13.5 54 32 30
2OF-12 1.1/16"X12 1.3/16"X12 O912 18.5 15 56 32 36
2OF-16-12 1.5/16"X12 1.3/16"X12 O916 18.5 15 55.5 38 36
2OF-16 1.5/16"X12 1.7/16"X12 O916 18.5 15 57.5 38 41
2OF-20-16 1.5/8"X12 1.7/16"X12 O920 18.5 15 61.5 50 41
2OF-20 1.5/8"X12 1.11/16"X12 O920 18.5 15 65 50 50
2OF-24 2"X12 1.7/8"X12 O924 18.5 16 65 55 60
