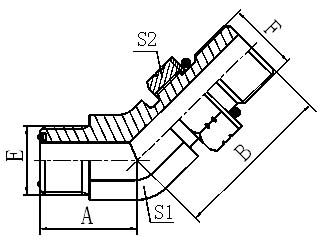

1FO4-OG





45掳 ELBOW ORFS MALE O-RING

SAE O-RING BOSS S-SERIES ISO 11926-2

PART NO. THREAD O-RING DIMENSIONS
E F E F A B S1 S2
1FO4-04OG 9/16"X18 7/16"X20 O011 O904 18.3 26 14 17
1FO4-04-06OG 9/16"X18 9/16"X18 O011 O906 18.3 28 14 19
1FO4-06-04OG 11/16"X16 7/16"X20 O012 O904 20.5 27.3 19 17
1FO4-06OG 11/16"X16 9/16"X18 O012 O906 20.5 29.5 19 19
1FO4-06-08OG 11/16"X16 3/4"X16 O012 O908 20.5 32.5 19 24
1FO4-08-06OG 13/16"X16 9/16"X18 O014 O906 24 30.8 22 19
1FO4-08OG 13/16"X16 3/4"X16 O014 O908 24 34 22 24
1FO4-08-10OG 13/16"X16 7/8"X14 O014 O910 24 39.5 22 27
1FO4-08-12OG 13/16"X16 1.1/16"X12 O014 O912 25.5 44 27 32
1FO4-10-08OG 1"X14 3/4"X16 O016 O908 28 34 27 24
1FO4-10OG 1"X14 7/8"X14 O016 O910 28 41.5 27 27
1FO4-10-12OG 1"X14 1.1/16"X12 O016 O912 28 44 27 32
1FO4-12-10OG 1.3/16"X12 7/8"X14 O018 O910 30.7 42 30 27
1FO4-12OG 1.3/16"X12 1.1/16"X12 O018 O912 30.7 45.5 30 32
1FO4-12-16OG 1.3/16"X12 1.5/16"X12 O018 O916 32.5 47.9 36 41
1FO4-16-12OG 1.7/16"X12 1.1/16"X12 O021 O912 33 47.9 36 32
1FO4-16OG 1.7/16"X12 1.5/16"X12 O021 O916 33 47.9 36 41
1FO4-16-20OG 1.7/16"X12 1.5/8"X12 O021 O920 35.5 48.5 41 50
1FO4-20OG 1.11/16"X12 1.5/8"X12 O025 O920 35.5 48.8 41 50
1FO4-20-24OG 1.11/16"X12 1.7/8"X12 O025 O924 38 51 48 55

Note: F end is connected with ISO 11926-1port.
