1FH

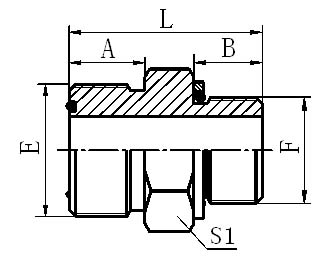

ORFS MALE/METRIC MALE WITH O-RING

PART NO. THREAD DIMENSIONS
E F A B L S1
1FH-04-10 9/16" X18 M10X1 9.8 9.5 27 17
1FH-04-12 9/16" X18 M12X1.5 9.8 11 27 17
1FH-06-12 11/16"X16 M12X1.5 11.2 11 31 19
1FH-06-14 11/16"X16 M14X1.5 11.2 11 31 19
1FH-06-16 11/16"X16 M16X1.5 11.2 12.5 33.5 22
1FH-08-16 13/16"X16 M16X1.5 12.8 12.5 35 22
1FH-08-18 13/16"X16 M18X1.5 12.8 14 36.5 24
1FH-08-22 13/16"X16 M22X1.5 12.8 15 37.5 27
1FH-10-22 1"X14 M22X1.5 15.5 15 40.5 27
1FH-12-22 1.3/16"X12 M22X1.5 17 15 43 32
1FH-12-27 1.3/16"X12 M27X2 17 18.5 46.5 32
1FH-16-33 1.7/16"X12 M33X2 17.5 18.5 49 41
1FH-20-42 1.11/16"X12 M42X2 17.5 19 51.5 50
1FH-24-48 2"X12 M48X2 17.5 21.5 57 55
