1FN4





45° ELBOW ORFS MALE O-RING / NPT MALE

PART NO. THREAD O-RING DIMENSIONS

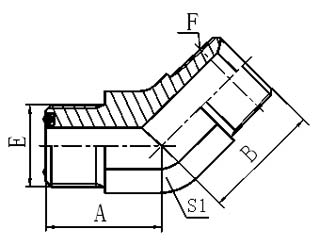

E F E A B S1
1FN4-04-02 9/16"X18 Z1/8"X27 O011 18.3 18 14
1FN4-04 9/16"X18 Z1/4"X18 O011 18.3 21 14
1FN4-04-06 9/16"X18 Z3/8"X18 O011 19.5 25 19
1FN4-06-04 11/16"X16 Z1/4"X18 O012 20.5 22 19
1FN4-06 11/16"X16 Z3/8"X18 O012 20.5 25 19
1FN4-06-08 11/16"X16 Z1/2"X14 O012 22 29.5 22
1FN4-08-06 13/16"X16 Z3/8"X18 O014 24 26 22
1FN4-08 13/16"X16 Z1/2"X14 O014 24 29.5 22
1FN4-10-08 1"X14 Z1/2"X14 O016 28 31 27
1FN4-12 1.3/16"X12 Z3/4"X14 O018 30.7 35.5 30
1FN4-16 1.7/16"X12 Z1"X11.5 O021 33 40 36
1FN4-20 1.11/16"X12 Z1.1/4"X11.5 O025 35.5 42.5 41
1FN4-24 2"X12 Z1.1/2"X11.5 O029 39 46.5 50
