AFF6F   AFF6F-LN

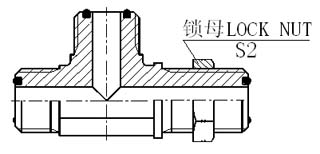

ORFS MALE O-RING BULKHEAD RUN TEE

PART NO. THREAD O-RING DIMENSIONS
E F G E F G A B C S1 S2
AFF6F-04 9/16"X18 9/16"X18 9/16"X18 O011 O011 O011 23 23 47 14 22
AFF6F-06 11/16"X16 11/16"X16 11/16"X16 O012 O012 O012 27 27 52 19 27
AFF6F-08 13/16"X16 13/16"X16 13/16"X16 O014 O014 O014 31 31 55.5 22 30
AFF6F-10 1"X14 1"X14 1"X14 O016 O016 O016 36.5 36.5 63 27 36
AFF6F-12 1.3/16"X12 1.3/16"X12 1.3/16"X12 O018 O018 O018 41 41 67.2 30 41
AFF6F-16 1.7/16"X12 1.7/16"X12 1.7/16"X12 O021 O021 O021 44.5 44.5 71.2 36 46
AFF6F-20 1.11/16"X12 1.11/16"X12 1.11/16"X12 O025 O025 O025 47.5 47.5 75.5 41 50
AFF6F-24 2"X12 2"X12 2"X12 O029 O029 O029 53.5 53.5 79.5 50 60



Note: In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.,for example AFF6F-16LN, The lock nut no. is 8F.
