6F4   6F4-LN

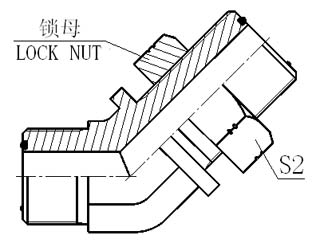

45° ELBOW ORFS MALE O-RING BULKHEAD

PART NO. THREAD O-RING DIMENSIONS
E F E F A B S1 S2
6F4-04 9/16"X18 9/16"X18 O011 O011 18.5 42.4 14 22
6F4-06 11/16"X16 11/16"X16 O012 O012 20.5 48.5 19 27
6F4-08 13/16"X16 13/16"X16 O014 O014 24 51 22 30
6F4-10 1"X14 1"X14 O016 O016 28 56.6 27 36
6F4-12 1.3/16"X12 1.3/16"X12 O018 O018 30.7 60.7 30 38
6F4-16 1.7/16"X12 1.7/16"X12 O021 O021 33 65.2 36 46



Note: In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no.,for example 6F4-16LN, The lock nut no. is 8F.
