CF

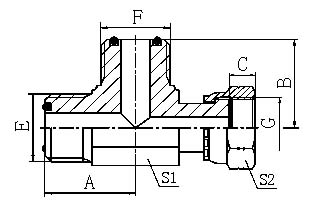

ORFS MALE O-RING / ORFS FEMALE RUN TEE

PART NO. THREAD O-RING DIMENSIONS
E F G E F A B C S1 S2
CF-04 9/16"X18 9/16"X18 9/16"X18 O011 O011 23 23 8.5 14 19
CF-06 11/16"X16 11/16"X16 11/16"X16 O012 O012 27.5 27.5 10 19 22
CF-08 13/16"X16 13/16"X16 13/16"X16 O014 O014 31 31 11 22 27
CF-10 1"X14 1"X14 1"X14 O016 O016 36.5 36.5 13.5 27 30
CF-12 1.3/16"X12 1.3/16"X12 1.3/16"X12 O018 O018 40.3 40.3 15 30 36
CF-16 1.7/16"X12 1.7/16"X12 1.7/16"X12 O021 O021 44.5 44.5 15 36 41
CF-20 1.11/16"X12 1.11/16"X12 1.11/16"X12 O025 O025 47.5 47.5 15 41 50
CF-24 2"X12 2"X12 2"X12 O029 O029 53.5 53.5 15 50 60
