1JM-WD

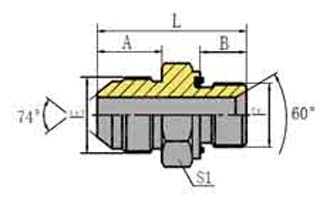

JIC MALE 74掳CONE/ METRIC MALE CAPTIVE SEAL


PART NO.

THREAD CAPTIVE DIMENSIONS
E F F A B L S1
1JM-04-12WD 7/16"X20 M12X1.5 WD-M12 14 12 34 17
1JM-05-14WD 1/2"X20 M14X1.5 WD-B04 14 12 34 19
1JM-06-14WD 9/16"X18 M14X1.5 WD-B04 14.1 12 34 19
1JM-06-18WD 9/16"X18 M18X1.5 WD-M18 14.1 12 36.5 24
1JM-06-20WD 9/16"X18 M20X1.5 WD-M20 14.1 14 40.5 27
1JM-08-16WD 3/4"X16 M16X1.5 WD-M16 16.7 12 38.5 22
1JM-08-18WD 3/4"X16 M18X1.5 WD-M18 16.7 12 39 24
1JM-08-20WD 3/4"X16 M20X1.5 WD-M20 16.7 14 43 27
1JM-08-22WD 3/4"X16 M22X1.5 WD-M22 16.7 14 43.5 27
1JM-10-20WD 7/8"X14 M20X1.5 WD-M20 19.3 14 45.5 27
1JM-10-22WD 7/8"X14 M22X1.5 WD-M22 19.3 14 46 27
1JM-12-18WD 1.1/16"X12 M18X1.5 WD-M18 21.9 12 46.5 30
1JM-12-20WD 1.1/16"X12 M20X1.5 WD-M20 21.9 14 48.5 30
1JM-12-22WD 1.1/16"X12 M22X1.5 WD-M22 21.9 14 48.5 30
1JM-12-26WD 1.1/16"X12 M26X1.5 WD-B12 21.9 16 52 32
1JM-12-27WD 1.1/16"X12 M27X2 WD-B12 21.9 16 52 32
1JM-16-33WD 1.5/16"X12 M33X2 WD-B16 23.1 18 57 41
1JM-20-42WD 1.5/8"X12 M42X2 WD-B20 24.3 20 62 50
1JM-24-48WD 1.7/8"X12 M48X2 WD-B24 27.5 22 67.5 55



Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
