5JB

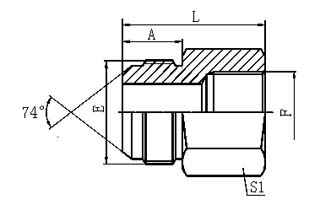

JIC MALE 74掳 CONE/BSP FEMALE

PART NO. THREAD DIMENSIONS
E F A L S1
5JB-04 7/16"X20 G1/4"X19 14 35 19
5JB-04-02 7/16"X20 G1/8"X28 14 30 14
5JB-06 9/16"X18 G3/8"X19 14.1 36.8 22
5JB-06-04 9/16"X18 G1/4"X19 14.1 34 19
5JB-08 3/4"X16 G1/2"X14 16.7 45.2 30
5JB-08-06 3/4"X16 G3/8"X19 16.7 40 22
5JB-08-12 3/4"X16 G3/4"X14 16.7 47 36
5JB-10-08 7/8"X14 G1/2"X14 19.3 47.5 30
5JB-12 1.1/16"X12 G3/4"X14 21.9 51.8 36
5JB-12-08 1.1/16"X12 G1/2"X14 21.9 48 30
5JB-16 1.5/16"X12 G1"X11 23.1 59.2 46
5JB-16-12 1.5/16"X12 G3/4"X14 23.1 50 36
5JB-20 1.5/8"X12 G1.1/4"X11 24.3 58.7 50
5JB-20-16 1.5/8"X12 G1"X11 24.3 55 46
5JB-24 1.7/8"X12 G1.1/2"X11 27.5 62 60
5JB-32 2.1/2"X12 G2"X11 33.9 67 70



Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
