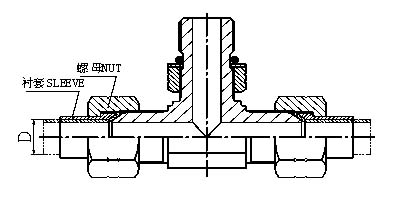

AJOJ-OG





JIC MALE 74掳 CONE

SAE O-RING BOSS L-SERIES ISO 11926-3 BRANCH TEE

PART NO. THREAD O-RING DIMENSIONS
E F G F A B C S1 S2
AJOJ-04OG 7/16"X20 7/16"X20 7/16"X20 O904 24.5 27.2 24.5 11 17
AJOJ-05-04-05OG 1/2"X20 7/16"X20 1/2"X20 O904 26.6 30 26.6 14 17
AJOJ-05OG 1/2"X20 1/2"X20 1/2"X20 O905 26.6 29 26.6 14 17
AJOJ-06-04-06OG 9/16"X18 7/16"X20 9/16"X18 O904 26.9 30 26.9 14 17
AJOJ-06-05-06OG 9/16"X18 1/2"X20 9/16"X18 O905 26.9 30 26.9 14 17
AJOJ-06OG 9/16"X18 9/16"X18 9/16"X18 O906 26.9 31.8 26.9 14 19
AJOJ-08-06-08OG 3/4"X16 9/16"X18 3/4"X16 O906 32 33.5 32 19 19
AJOJ-08OG 3/4"X16 3/4"X16 3/4"X16 O908 33 36.8 33 19 24
AJOJ-10-08-10OG 7/8"X14 3/4"X16 7/8"X14 O908 38 40 38 22 24
AJOJ-10OG 7/8"X14 7/8"X14 7/8"X14 O910 37.8 44 37.8 22 27
AJOJ-12-08-12OG 1.1/16"X12 3/4"X16 1.1/16"X12 O908 45 44 45 27 24
AJOJ-12-10-12OG 1.1/16"X12 7/8"X14 1.1/16"X12 O910 44.2 49 44.2 27 27
AJOJ-12OG 1.1/16"X12 1.1/16"X12 1.1/16"X12 O912 44.2 51 44.2 27 32
AJOJ-16OG 1.5/16"X12 1.5/16"X12 1.5/16"X12 O916 48.8 54.5 48.8 33 41
AJOJ-20-16-20OG 1.5/8"X12 1.5/16"X12 1.5/8"X12 O916 55.5 59.5 55.5 41 41
AJOJ-20OG 1.5/8"X12 1.5/8"X12 1.5/8"X12 O920 55.3 59 55.3 41 50
AJOJ-24OG 1.7/8"X12 1.7/8"X12 1.7/8"X12 O924 62.5 63 62.5 48 55
