1JO4-OG





45掳 JIC MALE 74掳CONE/ SAE O-RING BOSS

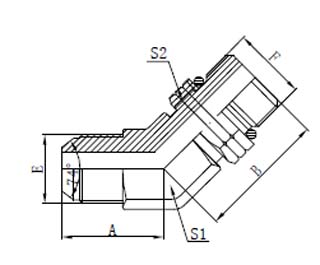

PART NO. THREAD O-RING DIMENSIONS
E
F
F
A
B
S1
S2
1JO4-04OG
7/16"X20
7/16"X20
O904
21
24
11
17
1JO4-04-06OG
7/16"X20
9/16"X18
O906
22.3
27.5
14
1S
1JO4-04-08OG
7/16"X20
3/4"X16
O90S
24.5
32.5
19
24
1JO4-05OG
1/2"X20
1/2"X20
O905
22
26.7
14
17
1JO4-05-04OG
1/2"X20
7/16"X20
O904
22
26.7
14
17
1JO4-06OG
9/16"X18
9/16"X18
O906
23.5
28
14
19
1JO4-06-04OG
9/16"X18
7/16"X20
O904
22.8
26
14
17
1JO4-06-05OG
9/16"X18
1/2"X20
O905
22.8
26
14
17
1JO4-06-08OG
9/16"X18
3/4"X16
O90S
25
32.5
19
24
1JO4-06-10OG
9/16"X18
7/8"X14
O910
25.5
38.5
22
27
1JO4-08OG
3/4"X16
3/4"X16
O908
25.8
32.5
19
24
1JO4-08-06OG
3/4"X16
9/16"X18
O906
26.5
28
19
19
1JO4-08-10OG
3/4"X16
7/8"X14
O910
28
38.7
22
27
1JO4-08-12OG
3/4"X16
1.1/16"X12
O912
30
43.9
27
32
1JO4-10OG
7/8"X14
7/8"X14
O910
29.5
38.7
22
27



Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
