5LN

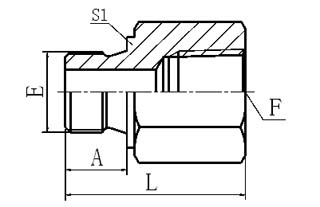

METRIC MALE WITH BONDED SEAL / NPT FEMALE


PART NO. THREAD 圈 SEAL DIMENSIONS
E F E A L S1
5LN-10-02 M10X1 Z1/8"X27 ZHD-10 8 23 17
5LN-12-02 M12X1.5 Z1/8"X27 ZHD-12 12 34.8 19
5LN-14-04 M14X1.5 Z1/4"X18 ZHD-14 12 34.8 19
5LN-16-06 M16X1.5 Z3/8"X18 ZHD-16 12 36.5 22
5LN-18-06 M18X1.5 Z3/8"X18 ZHD-18 12 36.5 24
5LN-22-06 M22X1.5 Z3/8"X18 ZHD-22 14 28 27
5LN-22-08 M22X1.5 Z1/2"X14 ZHD-22 14 39 30
5LN-27-08 M27X2 Z1/2"X14 ZHD-27 16 40 34
5LN-27-12 M27X2 Z3/4"X14 ZHD-27 16 41 36
5LN-33-16 M33X2 Z1"X11.5 ZHD-33 18 56.6 41
