5GN





BSP MALE O-RING/NPT FEMALE

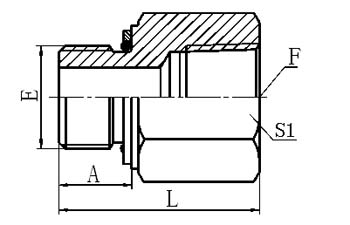

PART NO. THREAD O-RING DIMENSIONS
E F E A L S1
5GN-02 G1/8"X28 Z1/8"X27 O011 9.5 24.5 17
5GN-02-04 G1/8"X28 Z1/4"X18 O011 9.5 29.5 19
5GN-04-02 G1/4"X19 Z1/8"X27 O111 11 26 19
5GN-04 G1/4"X19 Z1/4"X18 O111 11 31 19
5GN-04-06 G1/4"X19 Z3/8"X18 O111 11 33 22
5GN-06-04 G3/8"X19 Z1/4"X18 O113 11.5 30 22
5GN-06 G3/8"X19 Z3/8"X18 O113 11.5 35 22
5GN-08-04 G1/2"X14 Z1/4"X18 O115 14 27 27
5GN-08-06 G1/2"X14 Z3/8"X18 O115 14 34 27
5GN-08 G1/2"X14 Z1/2"X14 O115 14 43 30
5GN-12 G3/4"X14 Z3/4"X14 O119 15.5 44.5 36
5GN-16 G1"X11 Z1"X11.5 O217 18 54.5 41
5GN-20
 G1.1/4"X11
 Z1.1/4"X11.5
 O222
 20 55.5 50
5GN-24 G1.1/2"X11 Z1.1/2"X11.5 O224 21.5 57 60
