1NO



NPT MALE / SAE O-RING BOSS L-SERIES

ISO 11926-3


PART NO. THREAD O-RING DIMENSIONS

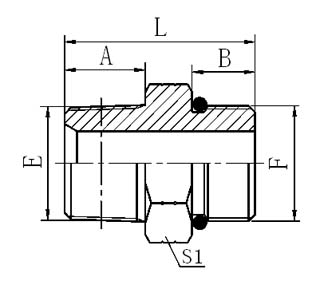

E F F A B L S1
1NO-04 Z1/4"X18 7/16"X20 O904 15 9.1 30 14
1NO-04-06 Z1/4"X18 9/16"X18 O906 15 9.9 31 17
1NO-06-04 Z3/8"X18 7/16"X20 O904 16 9.1 31 19
1NO-06 Z3/8"X18 9/16"X18 O906 16 9.9 32 19
1NO-06-08 Z3/8"X18 3/4"X16 O908 16 11.1 35.5 22
1NO-08 Z1/2"X14 3/4"X16 O908 19.5 11.1 38.5 22
1NO-08-10 Z1/2"X14 7/8"X14 O910 19.5 12.7 42 27
1NO-08-12 Z1/2"X14 1.1/16"X12 O912 19.5 15.1 45.5 32
1NO-12-10 Z3/4"X14 7/8"X14 O910 19.5 12.7 43 30
1NO-12 Z3/4"X14 1.1/16"X12 O912 19.5 15.1 45.5 32
1NO-16 Z1"X11.5 1.5/16"X12 O916 25.5 15.1 51.5 38
1NO-20-16 Z1.1/4"X11.5 1.5/16"X12 O916 26.5 15.1 54.5 46
1NO-20 Z1.1/4"X11.5 1.5/8"X12 O920 26.5 15.1 56.5 50
1NO-24 Z1.1/2"X11.5 1.7/8"X12 O924 27.5 15.1 57.5 55
