HN

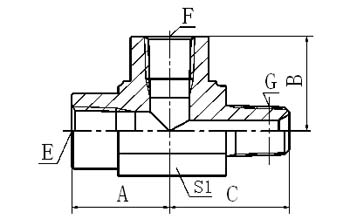

NPT FEMALE / NPT MALE RUN TEE


PART NO. THREAD DIMENSIONS
E F G A B C S1
HN-02 Z1/8"X27 Z1/8"X27 Z1/8"X27 20 20 24.5 16
HN-04 Z1/4"X18 Z1/4"X18 Z1/4"X18 25 25 28.5 19
HN-06 Z3/8"X18 Z3/8"X18 Z3/8"X18 27 27 33.5 24
HN-08 Z1/2"X14 Z1/2"X14 Z1/2"X14 35 35 42.5 30
HN-12 Z3/4"X14 Z3/4"X14 Z3/4"X14 37 37 45.2 33
HN-16 Z1"X11.5 Z1"X11.5 Z1"X11.5 44 44 54.7 41
HN-20 Z1.1/4"X11.5 Z1.1/4"X11.5 Z1.1/4"X11.5 48 48 58.5 48
