JN

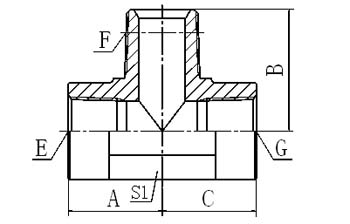

NPT FEMALE / NPT MALE BRANCH TEE


PART NO. THREAD DIMENSIONS
E F G A B C S1
JN-02 Z1/8"X27 Z1/8"X27 Z1/8"X27 17.8 24.5 17.8 14
JN-04 Z1/4"X18 Z1/4"X18 Z1/4"X18 22.4 28 22.4 19
JN-06 Z3/8"X18 Z3/8"X18 Z3/8"X18 25 33.5 25 24
JN-08 Z1/2"X14 Z1/2"X14 Z1/2"X14 31.2 41.2 31.2 30
JN-12 Z3/4"X14 Z3/4"X14 Z3/4"X14 34.5 45.2 34.5 33
JN-16 Z1"X11.5 Z1"X11.5 Z1"X11.5 41.1 54.5 41.1 41
