5N4

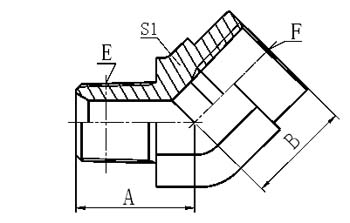

45° ELBOW NPT MALE / NPT FEMALE


PART NO. THREAD DIMENSIONS
E F A B S1
5N4-02 Z1/8"X27 Z1/8"X27 19 17 16
5N4-04 Z1/4"X18 Z1/4"X18 22 20 19
5N4-06 Z3/8"X18 Z3/8"X18 27 19 24
5N4-08 Z1/2"X14 Z1/2"X14 31.7 28 30
5N4-12 Z3/4"X14 Z3/4"X14 36.5 30 33
5N4-16 Z1"X11.5 Z1"X11.5 42.5 37.5 41
5N4-20 Z1.1/4"X11.5 Z1.1/4"X11.5 44 30 48
5N4-24 Z1.1/2"X11.5 Z1.1/2"X11.5 51 36 63
