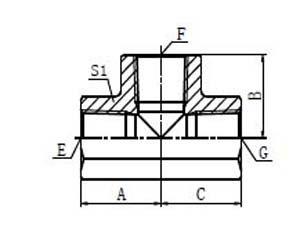

PART NO.
|
THREAD |
DIMENSIONS |
| E |
F |
G |
A |
B |
C |
S1 |
| PGT-02PK | Rc1/8"X28 | Rc1/8"X28 | Rc1/8"X28 | 20 | 20 | 20 | 16 | | PGT-04PK | Rc1/4"X19 | Rc1/4"X19 | Rc1/4"X19 | 22.5 | 22.5 | 22.5 | 19 | | PGT-06PK | Rc3/8"X19 | Rc3/8"X19 | Rc3/8"X19 | 26 | 26 | 26 | 24 | | PGT-08PK | Rc1/2"X14 | Rc1/2"X14 | Rc1/2"X14 | 31 | 31 | 31 | 27 | | PGT-12PK | Rc3/4"X14 | Rc3/4"X14 | Rc3/4"X14 | 34 | 34 | 34 | 33 | | PGT-16PK | Rc1"X11 | Rc1"X11 | Rc1"X11 | 42 | 42 | 42 | 41 | | PGT-20PK | Rc1.1/4"X11 | Rc1.1/4"X11 | Rc1.1/4"X11 | 48 | 48 | 48 | 50 | | PGT-24PK | Rc1.1/2"X11 | Rc1.1/2"X11 | Rc1.1/2"X11 | 53 | 53 | 53 | 60 | | PGT-32PK | Rc2"X11 | Rc2"X11 | Rc2"X11 | 62 | 62 | 62 | 70 |
| |
|
|
|
|
|
|
|
|
