5B-G

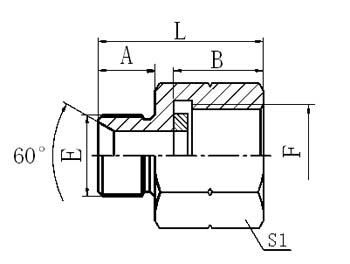

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSP FEMALE PRESSURE GAUGE CONNECTORS


PART NO. THREAD COPPER WASHER DIMENSIONS
E F F A B L S1
5B-04G G1/4"x19 G1/4"X19 DP-B04G 12 11 26 19
5B-06-04G G3/8"x19 G1/4"X19 DP-B04G 13.5 11 28.5 22
5B-06-08G G3/8"x19 G1/2"X14 DP-B08G 13.5 17 35.5 27
5B-08G G1/2"x14 G1/2"X14 DP-B08G 16 17 37 27
