2T9-G/SP





BSPT MALE/BSP PRESSURE GAUGE CONNECTOR


PART NO.

        THREAD

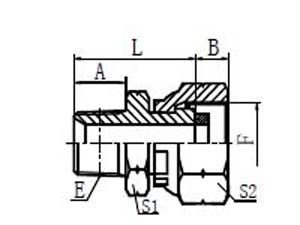

      DIMENSIONS

E

F

A

B

L

S1

S2
2TB-02-04G/SP R1/8"X28 G1/4"X19 10

14.5

 24.5 12 19
2TB-04G/SP R1/4"X19 G1/4"X19 14.5 14.5 29 17 19
2TB-04-08G/SP R1/4"X19 G1/2"X14 14.5 20 31.5 19 27
2TB-06-04G/SP R3/8"X19 G1/4"X19 15 14.5 29.5 19 19
2TB-08-04G/SP R1/2"X14 G1/4"X19 20 14.5 36.5 22 19
2TB-08G/SP R1/2"X14 G1/2"X14 20 20 39 22 27
