5BT

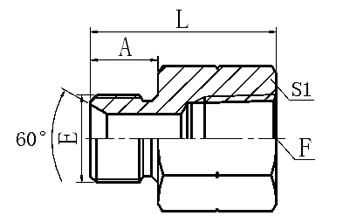

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSPT FEMALE

PART NO. THREAD DIMENSIONS
E F A L S1
5BT-04-02 G1/4"X19 Rc1/8"X28 12 28 19
5BT-04 G1/4"X19 Rc1/4"X19 12 33.5 19
5BT-04-06 G1/4"X19 Rc3/8"X19 12 34 22
5BT-04-08 G1/4"X19 Rc1/2"X14 12 41 27
5BT-06-04 G3/8"X19 Rc1/4"X19 13.5 35 22
5BT-06 G3/8"X19 Rc3/8"X19 13.5 34 22
5BT-08-06 G1/2"X14 Rc3/8"X19 16 39.5 27
5BT-08 G1/2"X14 Rc1/2"X14 16 45 27
5BT-10-08 G5/8"X14 Rc1/2"X14 17.5 43.5 30
5BT-12-08 G3/4"X14 Rc1/2"X14 18.5 47.5 32
5BT-12 G3/4"X14 Rc3/4"X14 18.5 49 36
5BT-16-12 G1"X11 Rc3/4"X14 20.5 47.5 41
5BT-16 G1"X11 Rc1"X11 20.5 57 41
5BT-20 G1.1/"X11 Rc1.1/4"X11 20.5 58.5 50
5BT-24 G1.1/2"X11 Rc1.1/2"X11 23 61 55
