5B9

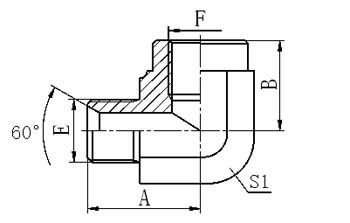

90° ELBOW BSP MALE 60° SEAT / BSP FEMALE

ISO 1179

PART NO. THREAD DIMENSIONS
E F A B S1
5B9-02 G1/8"X28 G1/8"X28 22.5 20 16
5B9-04 G1/4"X19 G1/4"X19 25.5 22 19
5B9-06 G3/8"X19 G3/8"X19 30.5 26 24
5B9-08 G1/2"X14 G1/2"X14 39 31 30
5B9-12 G3/4"X14 G3/4"X14 43.5 37 33
5B9-16 G1"X11 G1"X11 50.5 43 41
5B9-20 G1.1/4"X11 G1.1/4"X11 55 46 50
