1BW

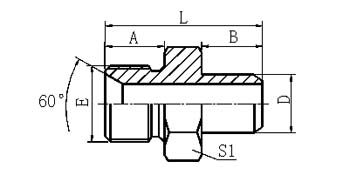

BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BUTT-WELD TUBE


PART NO. THREAD 直 TUBE O.D. DIMENSIONS
E   A B D L S1
1BW-04-10 G1/4"X19 10 12 7 10 25 19
1BW-06-14 G3/8"X19 14 13.5 8 14 29.5 22
1BW-08-18 G1/2"X14 18 16 10 18 36 27
1BW-12-22 G3/4"X14 22 18.5 10 22 39.5 32
1BW-12-28 G3/4"X14 28 18.5 12 28 41.5 32
1BW-16-28 G1"X11 28 20.5 12 28 45.5 41
1BW-16-30 G1"X11 30 20.5 12 30 45.5 41
1BW-20-34 G1.1/4"X11 34 20.5 14 34 49.5 50
1BW-20-36 G1.1/4"X11 36 20.5 14 36 49.5 50
1BW-20-42 G1.1/4"X11 42 20.5 16 42 51.5 50
1BW-24-36 G1.1/2"X11 36 23 14 36 52 55
1BW-24-42 G1.1/2"X11 42 23 16 42 54 55
1BW-24-50 G1.1/2"X11 50 23 16 50 54 55
