1BM





BSP MALE 60°SEAT/METRIC MALE 60°SEAT

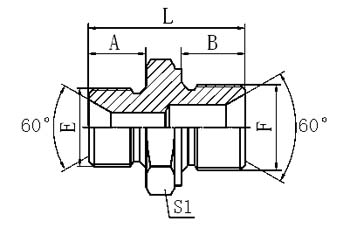

PART NO. THREAD DIMENSIONS
E F A B L S1
1BM-02-10 G1/8"X28 M10X1 10 8 24 14
1BM-02-12 G1/8"X28 M12X1.5 10 10 26 17
1BM-04-12 G1/4"X19 M12X1.5 12 10 28 19
1BM-04-14 G1/4"X19 M14X1.5 12 11 29 19
1BM-06-12 G3/8"X19 M12X1.5 13.5 10 31.5 22
1BM-06-14 G3/8"X19 M14X1.5 13.5 11 32.5 22
1BM-06-16 G3/8"X19 M16X1.5 13.5 12 33.5 22
1BM-08-18 G1/2"X14 M18X1.5 16 12 39 27
1BM-08-20 G1/2"X14 M20X1.5 16 14 41 27
1BM-08-22 G1/2"X14 M22X1.5 16 14 41 27
1BM-10-22 G5/8"X14 M22X1.5 17.5 14 41.5 30
1BM-10-26 G5/8"X14 M26X1.5 17.5 16 44.5 32
1BM-12-26 G3/4"X14 M26X1.5 18.5 16 46.5 32
1BM-12-27 G3/4"X14 M27X2 18.5 16 46.5 32
1BM-12-27D G3/4"X14 M27X1.5 18.5 16 46.5 32
1BM-16-30 G1"X11 M30X2 20.5 18 53 41
1BM-16-30D G1"X11 M30X1.5 20.5 18 53 41
1BM-16-38 G1"X11 M38X2 20.5 20 53.5 46
1BM-16-38D G1"X11 M38X1.5 20.5 20 53.5 46
1BM-20-38 G1.1/4"X11 M38X2 20.5 20 55.5 50
