1BJ9

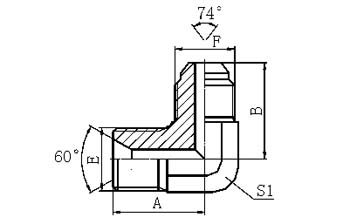

90° ELBOW BSP MALE 60° SEAT / JIC MALE 74掳 CONE


PART NO. THREAD DIMENSIONS
E F A B S1
1BJ9-04 G1/4"X19 7/16"X20 24.5 26.5 14
1BJ9-04-05 G1/4"X19 1/2"X20 23.5 28 14
1BJ9-04-06 G1/4"X19 9/16"X18 24.5 26.9 14
1BJ9-06 G3/8"X19 9/16"X18 27.5 28.5 16
1BJ9-06-08 G3/8"X19 3/4"X16 28.5 32 19
1BJ9-08 G1/2"X14 3/4"X16 32.5 35 22
1BJ9-08-10 G1/2"X14 7/8"X14 34.5 37.8 22
1BJ9-10 G5/8"X14 7/8"X14 32.7 38.1 22
1BJ9-12 G3/4"X14 1.1/16"X12 37 44.2 27
1BJ9-16 G1"X11 1.5/16"X12 46 49 33
1BJ9-16-20 G1"X11 1.5/8"X12 50.5 55.5 41
