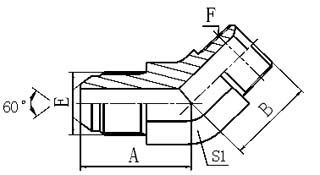

1ST4-SP



45° JIS GAS MALE 60° CONE / BSPT MALE


PART NO. THREAD DIMENSIONS
E F A B S1
1ST4-02SP G1/8"X28 R1/8"X28 19 17 11
1ST4-02-04SP G1/8"X28 R1/4"X19 19.8 21 14
1ST4-04SP G1/4"X19 R1/4"X19 24 21 14
1ST4-04-02SP G1/4"X19 R1/8"X28 24.5 17.5 14
1ST4-04-06SP G1/4"X19 R3/8"X19 24.5 23 16
1ST4-04-08SP G1/4"X19 R1/2"X14 26.5 29.5 22
1ST4-06SP G3/8"X19 R3/8"X19 26 23 16
1ST4-06-04SP G3/8"X19 R1/4"X19 26 21 16
1ST4-06-08SP G3/8"X19 R1/2"X14 28.5 29.5 22
1ST4-08SP G1/2"X14 R1/2"X14 31 29.5 22
1ST4-08-06SP G1/2"X14 R3/8"X19 30.5 25 22
1ST4-12SP G3/4"X14 R3/4"X14 34.5 30.5 27
1ST4-12-08SP G3/4"X14 R1/2"X14 34 30 27
1ST4-16SP G1"X11 R1"X11 37.5 38 33
1ST4-16-12SP G1"X11 R3/4"X14 37.5 32 33
1ST4-20SP G1.1/4"X11 R1.1/4"X11 44.5 43 41
1ST4-24SP G1.1/2"X11 R1.1/2"X11 47.5 47 48
1ST4-32SP G2"X11 R2"X11 54 53 63
