1ST-SP

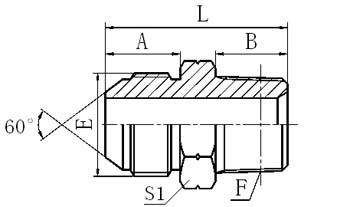

JIS GAS MALE 60° CONE / BSPT MALE


PART NO. THREAD DIMENSIONS
E F A B L S1
1ST-02SP G1/8"X28 R1/8"X28 12 10 28 14
1ST-02-04SP G1/8"X28 R1/4"X19 12 14.5 32.5 17
1ST-04SP G1/4"X19 R1/4"X19 16 14.5 36.5 17
1ST-04-02SP G1/4"X19 R1/8"X28 16 10 32 17
1ST-04-06SP G1/4"X19 R3/8"X19 16 15 37 19
1ST-04-08SP G1/4"X19 R1/2"X14 16 20 44 22
1ST-06SP G3/8"X19 R3/8"X19 18 15 39 19
1ST-06-04SP G3/8"X19 R1/4"X19 18 14.5 40.5 22
1ST-06-08SP G3/8"X19 R1/2"X14 18 20 46 22
1ST-08SP G1/2"X14 R1/2"X14 20 20 48 22
1ST-08-04SP G1/2"X14 R1/4"X19 20 14.5 42.5 22
1ST-08-06SP G1/2"X14 R3/8"X19 20 15 45 27
1ST-08-12SP G1/2"X14 R3/4"X14 20 20 50 27
1ST-12SP G3/4"X14 R3/4"X14 22 20 53 30
1ST-12-08SP G3/4"X14 R1/2"X14 22 20 52 30
1ST-12-16SP G3/4"X14 R1"X11 22 25.5 58.5 36
1ST-16SP G1"X11 R1"X11 24 25.5 62.5 41
1ST-16-12SP G1"X11 R3/4"X14 24 20 57 41
1ST-20SP G1.1/4"X11 R1.1/4"X11 27 26.5 66 46
1ST-24SP G1.1/2"X11 R1.1/2"X11 27 26.5 67.5 50
