ASSG-OG

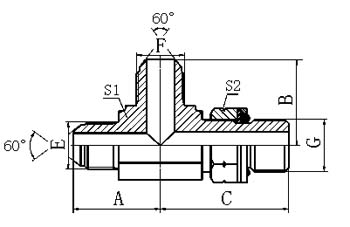

JIS GAS MALE / BSP MALE O-RING RUN TEE


PART NO. THREAD O-RING DIMENSIONS
E F G G A B C S1 S2
ASSG-02OG G1/8"X28 G1/8"X28 G1/8"X28 O011 21.8 21.8 27 11 14
ASSG-04OG G1/4"X19 G1/4"X19 G1/4"X19 O111 28 28 31 14 19
ASSG-06OG G3/8"X19 G3/8"X19 G3/8"X19 O113 29 29 35.5 16 22
ASSG-08OG G1/2"X14 G1/2"X14 G1/2"X14 O115 38 38 43.5 22 27
ASSG-12OG G3/4"X14 G3/4"X14 G3/4"X14 O119 43 43 49.5 27 32
ASSG-16OG G1"X11 G1"X11 G1"X11 O217 48.5 48.5 54.5 33 41
ASSG-20OG G1.1/4"X11 G1.1/4"X11 G1.1/4"X11 O222 57 57 59 41 50
ASSG-24OG G1.1/2"X11 G1.1/2"X11 G1.1/2"X11 O224 61 61 65 48 55

Note: F end is connected with DIN 3852 port.
