1SG9-OG

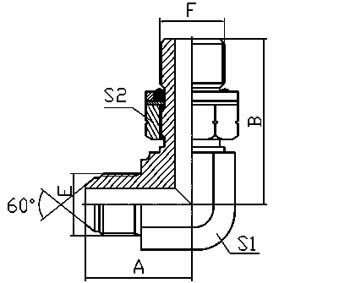

90° ELBOW JIS GAS MALE 60° CONE / BSP MALE O-RING


PART NO. THREAD O-RING DIMENSIONS
E F F A B S1 S2
1SG9-02OG G1/8"X28 G1/8"X28 O011 21.8 26.2 11 14
1SG9-04OG G1/4"X19 G1/4"X19 O111 28 31.3 14 19
1SG9-06OG G3/8"X19 G3/8"X19 O113 29 35.8 16 22
1SG9-08OG G1/2"X14 G1/2"X14 O115 38 43.2 22 27
1SG9-12OG G3/4"X14 G3/4"X14 O119 43 49.3 27 32
1SG9-16OG G1"X11 G1"X11 O217 48.5 53 33 41
1SG9-20OG G1.1/4"X11 G1.1/4"X11 O222 57 59 41 50
1SG9-24OG G1.1/2"X11 G1.1/2"X11 O224 61 65 48 55
