1SG

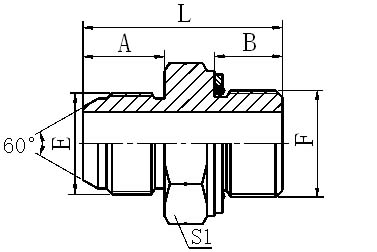

JIS GAS MALE 60°CONE/ BSP MALE O-RING

PART NO. THREAD O-RING DIMENSIONS
E F F A B L S1
1SG-02 G1/8"X28 G1/8"X28 O011 12 9.5 29 14
1SG-04 G1/4"X19 G1/4"X19 O111 16 11 33.5 19
1SG-06 G3/8"X19 G3/8"X19 O113 18 11.5 37.5 22
1SG-08 G1/2"X14 G1/2"X14 O115 20 14 44 27
1SG-12 G3/4"X14 G3/4"X14 O119 22 15.5 48.5 32
1SG-16 G1"X11 G1"X11 O217 24 18 55 41
1SG-20 G1.1/4"X11 G1.1/4"X11 O222 27 20 59 50
1SG-24 G1.1/2"X11 G1.1/2"X11 O224 27 21.5 62.5 55
