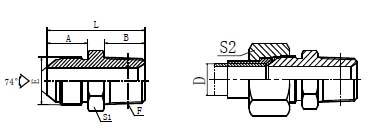

1QN   1QN-RN





METRIC MALE 74° CONE/NPT MALE


PART NO.

 THREAD TUBE O.D. DIMENSIONS
E F D   A B L S1 S2
1QN-12-02 M12X1.5 Z1/8"X27 6   15.7 10.5 32 14 14
1QN-12-04 M12X1.5 Z1/4"X18 6   15.7 15 36.5 14 14
1QN-14-02 M14X1.5 Z1/8"X27 8   17 10.5 33 17 17
1QN-14-04 M14X1.5 Z1/4"X18 8   17 15 38 17 17
1QN-16-04 M16X1.5 Z1/4"X18 10   18 15 39 19 19
1QN-16-06 M16X1.5 Z3/8"X18 10   18 16 40 19 19
1QN-18-04 M18X1.5 Z1/4"X18 12   18 15 39 19 22
1QN-18-06 M18X1.5 Z3/8"X18 12   18 16 40 19 22
1QN-18-08 M18X1.5 Z1/2"X14 12   18 19.5 45.5 24 22
1QN-22-08 M22X1.5 Z1/2"X14 14   19.5 19.5 47 24 27
1QN-27-06 M27X1.5 Z3/8"X18 18   20 16.5 46 30 32
1QN-27-08 M27X1.5 Z1/2"X14 18   20 19 49 30 32
1QN-27-16 M27X1.5 Z1"X11.5 18   20 24 55 36 32
1QN-36-16 M36X2 Z1"X11.5 25   25 25.5 63 41 41
1QN-39-16 M39X2 Z1"X11.5 28   26 25.5 64.5 41 46
1QN-45-16 M45X2 Z1"X11.5 34   28.5 25.5 67 46 50
1QN-45-20 M45X2 Z1.1/4"X11.5 34   28.5 26.5 68 46 50
1QN-45-24 M45X2 Z1.1/2"X11.5 34   28.5 27.5 71 50 50



Note: In case if you are interested to order the adapter in complete set with sleeve and nut ,it is necessary to insert suffix "RN" after our part no.,for example AQ-18RN.
