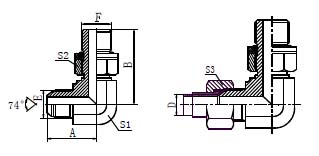

1QH9-OG





90° METRIC 74° CONE/METRIC WITH O-RING


PART NO.

THREAD TUBE O.D. O-RING DIMENSIONS
E F D F A B S1 S2 S3
1QH9-14-12OG M14X1.5 M12X1.25 8 9.3X2.4 29 32 14 17 17
1QH9-16-14OG M16X1.5 M14X1.5 10 11.3X2.4 32 34 16 19 19
1QH9-18-16OG M18x1.5 M16x1.5 12 13.3X2.4 34 36 19 22 22
1QH9-22-18OG M22x1.5 M18x1.5 14 15.3X2.4 37.5 39.5 22 24 27
1QH9-24-22OG M24x1.5 M22x1.5 16 19.3X2.4 39 41.2 24 27 30
1QH9-27-22OG M27x1.5 M22x1.5 18 19.3X2.4 41.5 43.5 27 27 32
1QH9-30-27OG M30x1.5 M27x2 20 23.5X3 45.8 50 30 32 36
1QH9-33-27OG M33x2 M27x2 22 23.5X3 49.5 52 33 32 41
1QH9-36-33OG M36x2 M33x2 25 29.2X3 51.5 54 36 41 41
1QH9-39-33OG M39x2 M33x2 28 29.2X3 55.5 57.2 41 41 46
1QH9-42-42OG M42x2 M42x2 32 38.5X3 57 57.5 41 50 50
1QH9-45-42OG M45x2 M42x2 34 38.5X3 62.5 61.2 48 50 50



Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.for example 1QH9-30-12SP/RN.
