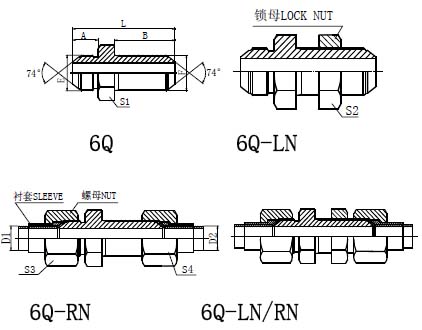

6Q  6Q-RN







METRIC MALE 74° CONE BULKHEAD

PART NO. THREAD

TUBE O.D.

DIMENSIONS
E F D1D2 A B L S1 S2 S3S4
6Q-10 M10X1 M10X1 5 12.5 34 52.5 14 14 14
6Q-12 M12X1.5 M12X1.5 6 15.7 38 59.7 17 17 14
6Q-14 M14X1.5 M14X1.5 8 17 40 64 17 19 17
6Q-16 M16X1.5 M16X1.5 10 18 41 65 19 22 19
6Q-18 M18X1.5 M18X1.5 12 18 43 69 24 24 22
6Q-22 M22X1.5 M22X1.5 14 19.5 44 73.5 27 27 27
6Q-24 M24X1.5 M24X1.5 16 20 45 75 27 30 30
6Q-27 M27X1.5 M27X1.5 18 20 48 78 30 32 32
6Q-30 M30X1.5 M30X1.5 20 23 53 87 34 36 36
6Q-33 M33X2 M33X2 22 26 55 92 36 41 38
6Q-36 M36X2 M36X2 25 25 56 94 41 41 41
6Q-39 M39X2 M39X2 28 26 58 97 41 46 46
6Q-42 M42X2 M42X2 32 28.5 59 102.5 50 50 50
6Q-45 M45X2 M45X2 34 28.5 60 103.5 50 50 55



Note: In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our part no. for example 6C-30LN; order the adapter with cutting ring and nut,insert suffix "RN" after part no. ,for example 6Q-30RN,order the adapter with lock nut and cutting ring part no.,for example 6Q-30LN/RN.and nut,insert suffix "LN/RN" after part no.,for example 6Q-30LN/RN.
