2D

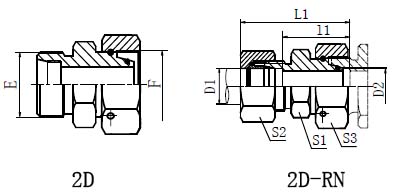

REDUCER TUBE ADAPTOR WITH SWIVEL NUT



PART NO. THREAD TUBE O.D. DIMENSIONS MPa
E F D1 D2 l1 L1 S1 S2 S3
2D-14-16 M14X1.5 M16X1.5 6 8 27 42 14 17 19 63 S
2D-14-18 M14X1.5 M18X1.5 6 10 27.5 42 17 17 22
2D-16-18 M16X1.5 M18X1.5 8 10 27.5 42 17 19 22
2D-14-20 M14X1.5 M20X1.5 6 12 29 44 17 17 24
2D-16-20 M16X1.5 M20X1.5 8 12 29 44 17 19 24
2D-18-20 M18X1.5 M20X1.5 10 12 31 46 19 22 24
2D-14-22 M14X1.5 M22X1.5 6 14 31.5 46 19 17 27
2D-16-22 M16X1.5 M22X1.5 8 14 31.5 46 19 19 27
2D-18-22 M18X1.5 M22X1.5 10 14 31 47 19 22 27
2D-20-22 M20X1.5 M22X1.5 12 14 31 47 22 24 27



Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.for example 2D-16-20RN.
