1ET-SP




METRIC MALE O-RING/BSPT MALE


PART NO.

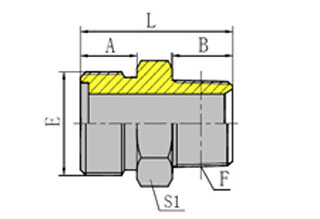

 THREAD O-RING DIMENSIONS
E F E A B L S1
1ET-14-04SP M14X1.5 R1/4"X19 10X1.9 11 14.5 31.5 14
1ET-14-06SP M14X1.5 R3/8"X19 10X1.9 11 15 32 17
1ET-16-04SP M16X1.5 R1/4"X19 11X1.9 11 14.5 31.5 17
1ET-16-06SP M16X1.5 R3/8"X19 11X1.9 11 15 32 17
1ET-18-06SP M18X1.5 R3/8"X19 13X1.9 11 15 32 19
1ET-18-08SP M18X1.5 R1/2"X14 13X1.9 11 20 37 22
1ET-22-08SP M22X1.5 R1/2"X14 16X2.4 12 20 40 24
1ET-22-12SP M22X1.5 R3/4"X14 16X2.4 12 20 40 27
1ET-24-06SP M24X1.5 R3/8"X19 18X2.4 13 15 38 27
1ET-24-08SP M24X1.5 R1/2"X14 18X2.4 13 20 43 27
1ET-27-08SP M27X1.5 R1/2"X14 20X2.4 13 20 43 30
1ET-27-12SP M27X1.5 R3/4"X14 20X2.4 13 20 43 30
1ET-30-12SP M30X1.5 R3/4"X14 24X2.4 14 20 45 32
1ET-36-12SP M36X2 R3/4"X14 30X3.1 16 20 47 38
1ET-36-16SP M36X2 R1"X11 30X3.1 16 25.5 52.5 38
1ET-39-16SP M39X2 R1"X11 32X3.1 18 25.5 56.5 41
1ET-39-20SP M39X2 R1.1/4"X11 32X3.1 18 26.5 57.5 46
1ET-42-20SP M42X2 R1.1/4"X11 35X3.1 20 26.5 59.5 46
1ET-45-20SP M45X2 R1.1/4"X11 38X3.1 21 26.5 60.5 46
1ET-52-24SP M52X2 R1.1/2"X11 40X3.1 22 26.5 63.5 55


Note:The parameter of E end O-Ring is ring outside diameter and ring width.
