AEEH-OG

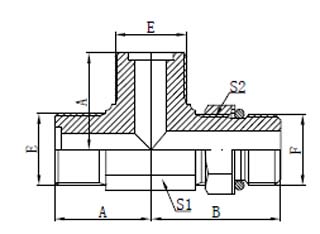

METRIC MALE O-RING/ METIRC MALE ADJUSTABLE STUD S-SERIES RUN TEE


PART NO.

THREAD DIMENSIONS
E F A B S1 S2
AEEH-12-12-10OG M12x1.5 M10x1 25 28.5 11 14
AEEH-14-14-12OG M14x1.5 M12x1.5 27 33.2 14 17
AEEH-16-16-14OG M16x1.5 M14x1.5 29 36 17 19
AEEH-18-18-16OG M18x1.5 M16x1.5 31 39 19 22
AEEH-22-22-18OG M22x1.5 M18x1.5 34 44 22 24
AEEH-27-27-22OG M27x1.5 M22x1.5 40 48 27 27
AEEH-30-30-27OG M30x1.5 M27x1.5 40 57 27 32
AEEH-36-36-33OG M36x2 M33x2 46 60.5 33 41
AEEH-39-39-33OG M39x2 M33x2 57 64 44 41
