1EH4-OG

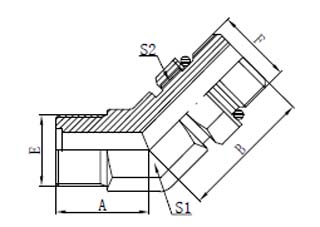

45°METRIC MALE O-RING/ ADJUSTABLE STUD




PART NO.

THREAD DIMENSIONS
E F A B S1 S2
1EH4-12-10OG M12x1.5 M10x1 20 25.5 11 14
1EH4-14-12OG M14x1.5 M12x1.5 22 30 14 17
1EH4-16-14OG M16x1.5 M14x1.5 22 30.5 17 19
1EH4-18-16OG M18x1.5 M16x1.5 24 34 19 22
1EH4-22-18OG M22x1.5 M18x1.5 27 38 22 24
1EH4-27-22OG M27x1.5 M22x1.5 33 40.5 27 27
1EH4-30-27OG M30x1.5 M27x1.5 33 48 27 32
1EH4-36-33OG M36x2 M33x2 37 49.5 33 41
1EH4-39-33OG M39x2 M33x2 41 52 44 41
1EH4-45-42OG M45x2 M42x2 41 54 44 50
1EH4-52-48OG M52x2 M48x2 47 58.5 53 55
